CarBit

A professional OBD2 engine diagnostics scanner that works with Wi-Fi and Bluetooth ELM327 adapters.

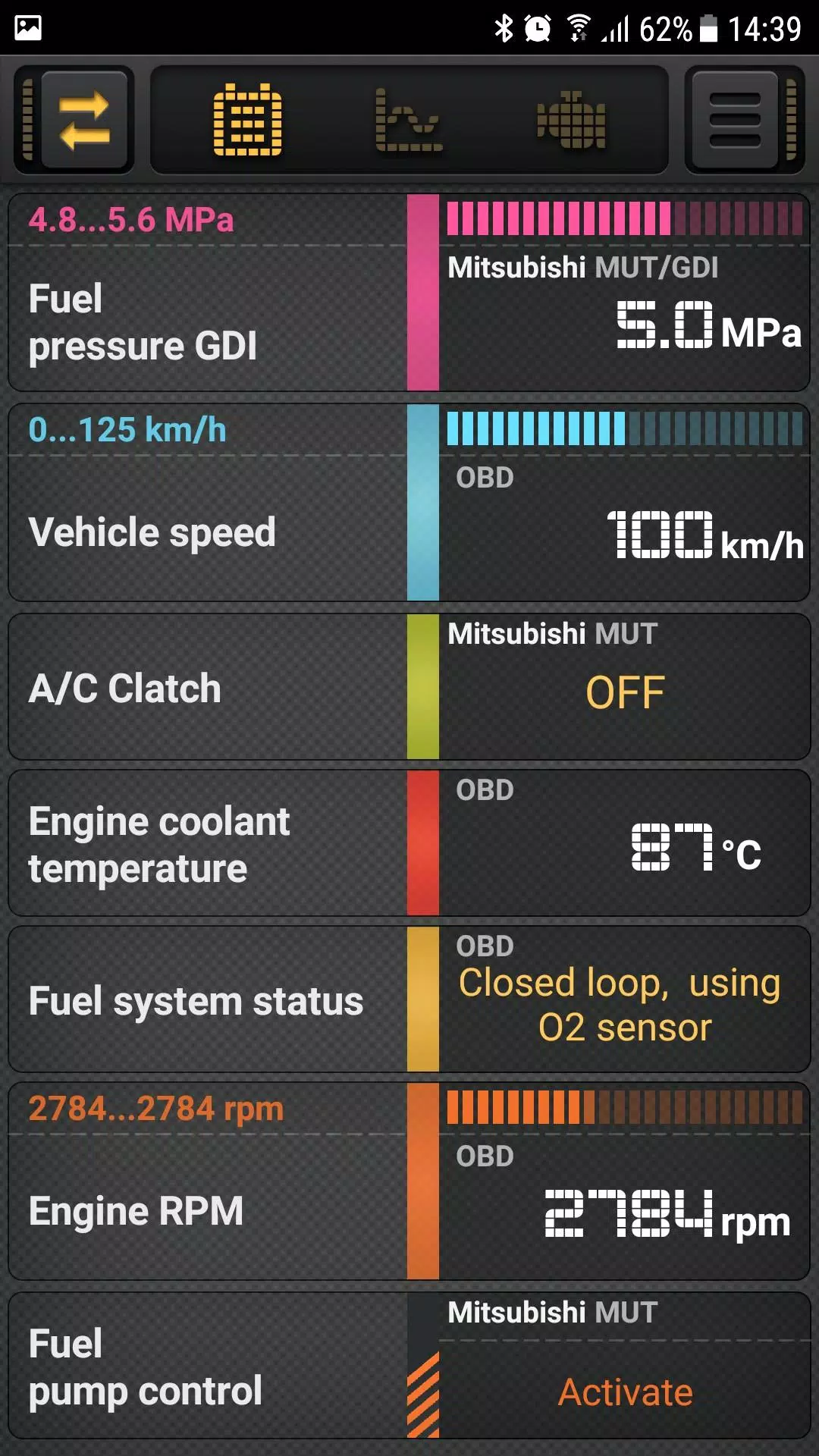

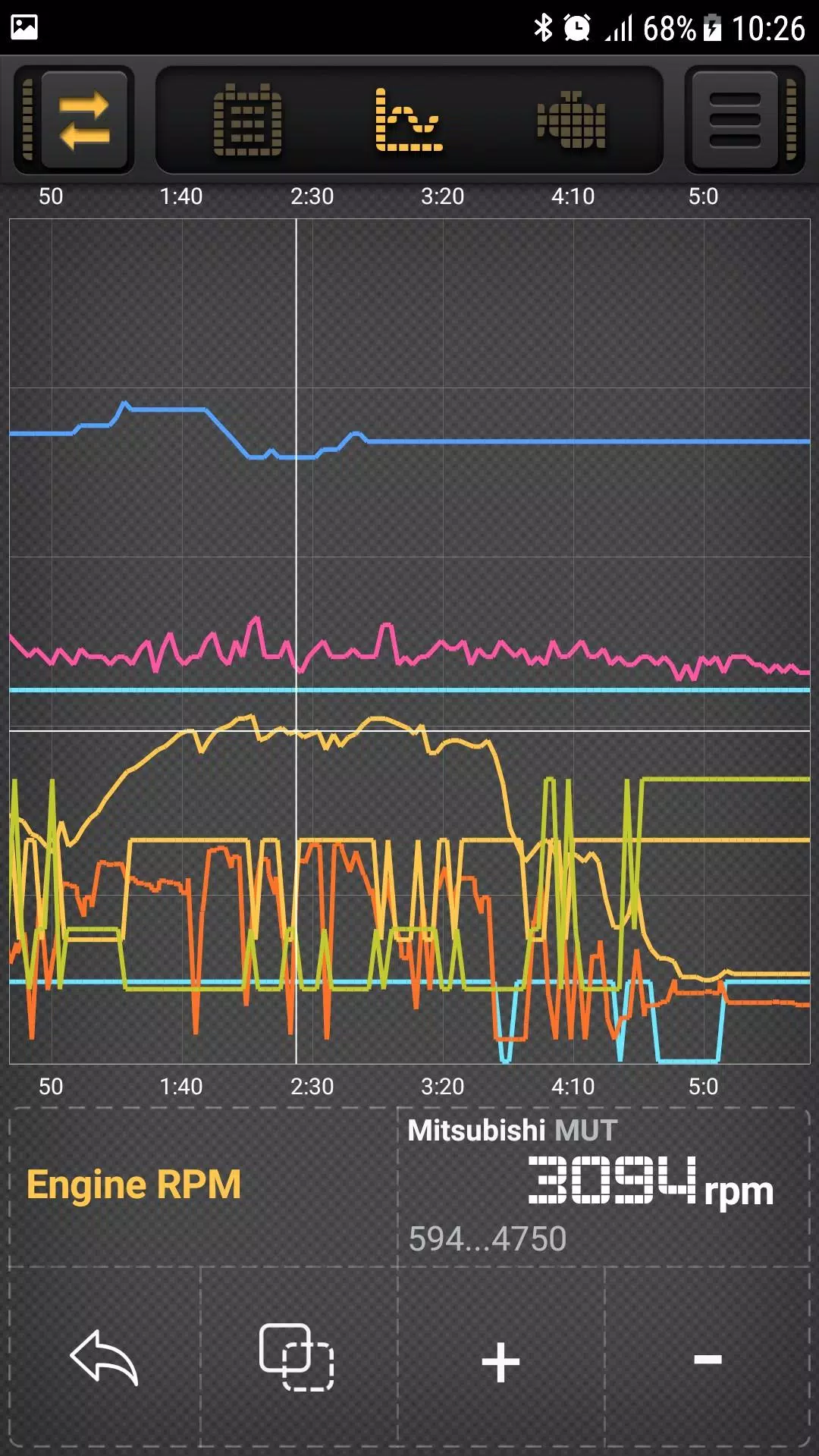

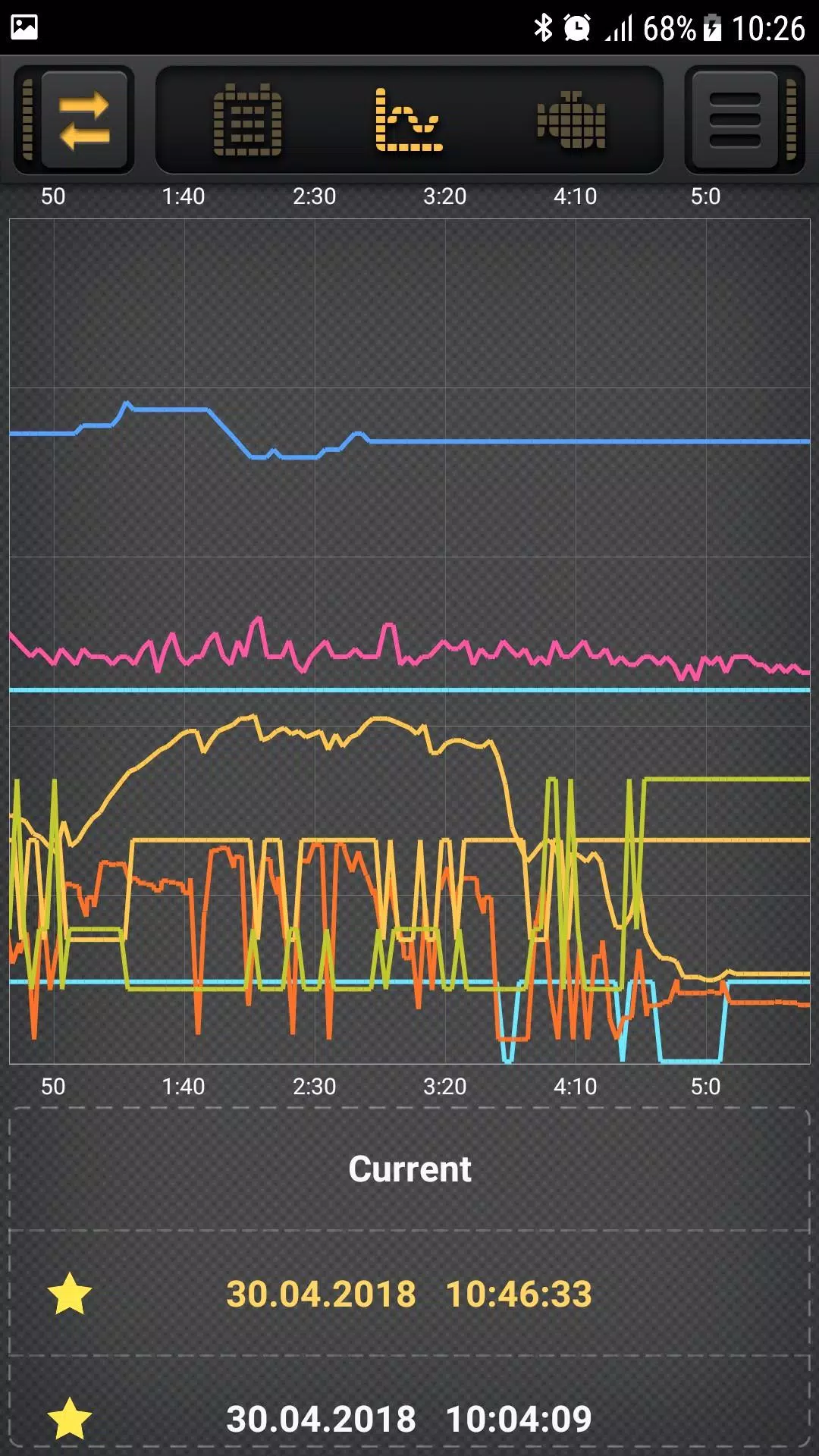

This car diagnostics app reads data from your vehicle's electronic control units via an ELM327 OBDII adapter. It displays real-time sensor graphs, allows you to save and review logs, and shows or resets engine trouble codes (DTCs).

You can set custom minimum and maximum threshold values for any sensor or PID to trigger an audible alarm.

Compatible with both Bluetooth ELM327 and Wi-Fi ELM327 OBD adapters.

For best results, use adapters version V1.5 to V2.1. There are numerous reports of connectivity issues with other versions.

Please note!

ELM327 chips are only compatible with OBD2-supported vehicles:

US market cars manufactured from 1996 onward,

European market cars from 2001 (gasoline) and 2003 (diesel),

Japanese market cars from approximately 2000.

In addition to standard OBDII parameters, the app supports special enhanced parameters for various

car brands. Currently available options include:

BMW - (DIESEL, E91+AT)

BYD - (MT20U, ABS)

Chery - (MT20U, MT20U2, ActecoME797)

Chrysler/Dodge - (DIESEL, AT)

Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)

Daewoo - (SiriusD42)

Fiat - (IAW49F, IAW5SF)

Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )

Geely - (MT20U, MT20U2, M797)

GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)

GreatWall - (MT20U2, EOBD, CAN/4D20)

Honda - (Fit, Accord, CRV/DIESEL, Insight)

Jeep - (ECU, DIESEL, AT, TPMS)

KIA, Hyundai -~15 PIDs for each model(ATF Temperature,

Knock detected and etc)

Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)

Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)

Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)

Mercedes - (W203/CDI, W169/CVT, W168)

Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)

(Important: Mitsubishi models prior to approximately 2000 do not support OBD and will not work with ELM327)

Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)

Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)

Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)

Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)

Skoda - (CAN UDS TSI/TFSI)

SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)

Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)

Suzuki - (CAN/ECU, KWP/ECU)

Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)

VAG - (TDI/2.5L, CAN UDS TSI/TFSI)

Volvo - (D5/P3)

VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74

KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)

GAZ - (MIKAS10.3/11.3, MIKAS11/E2)

ZAZ - (MIKAS10.3/11.3, MR140)

UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)

This list of models and parameters is regularly updated...

Note that not all PIDs listed for a specific brand may be supported by your vehicle. For convenience, you can select desired PID types under "Settings / PID types".

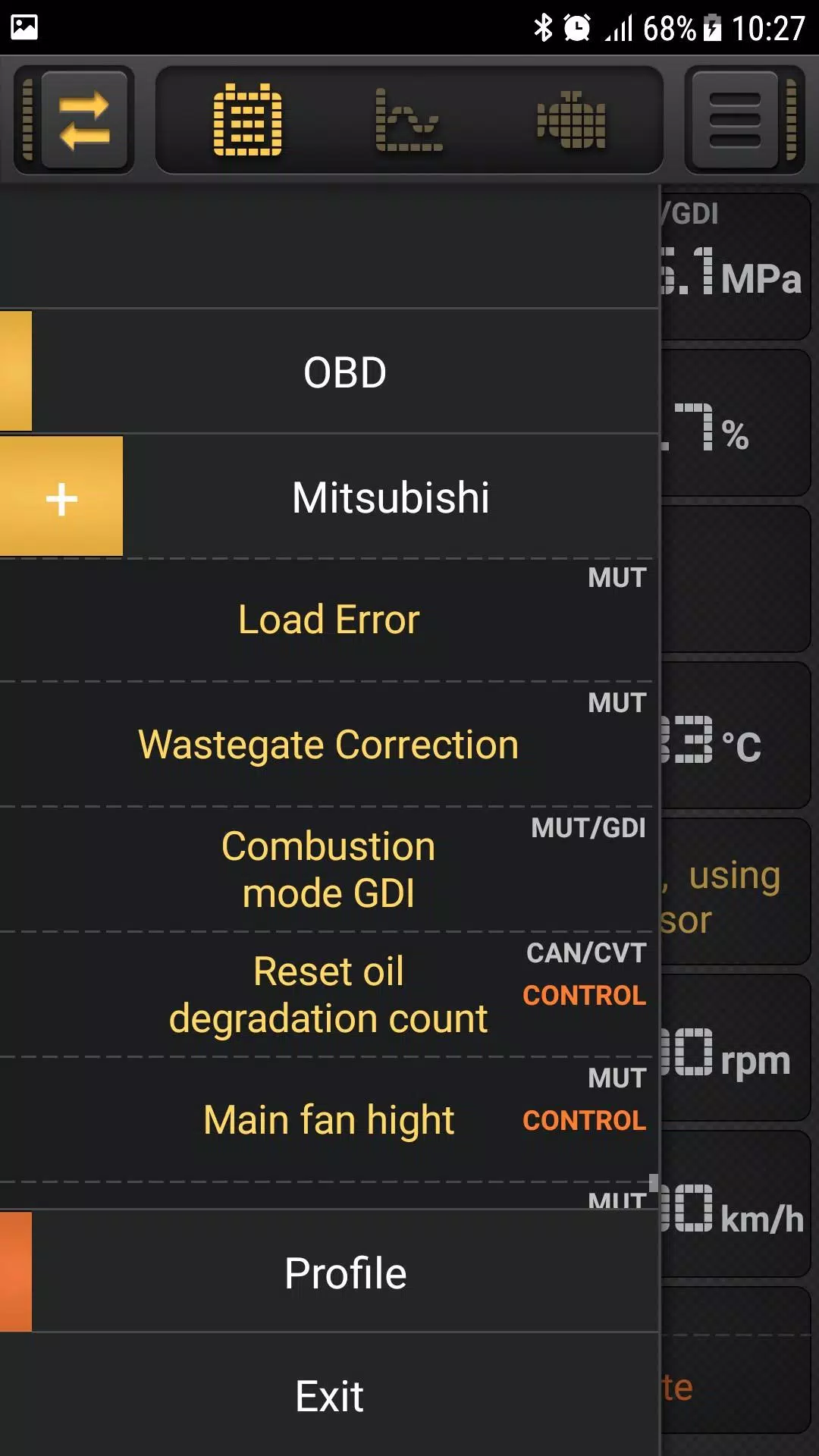

For select car brands (currently some Mitsubishi models), the app provides the ability to control various systems, such as activating a cooling fan or fuel pump.

To read MUT parameters and control actuators on Mitsubishi CAN bus models (e.g., Montero/Pajero IV, Outlander 2), you must create a profile using the ISO 9141-2 protocol. For all other CAN parameter reading profiles, keep the protocol set to ISO 15765-4 CAN (11bit 500K) or Auto.

Not all Mitsubishi CAN-bus models support ISO 9141-2 connectivity.

The app offers extensive capabilities for creating custom parameters.

What's New in the Latest Version 3.5.9

Last updated on Sep 30, 2024

This update includes minor bug fixes and performance enhancements. Install or update to the latest version to try it out!
